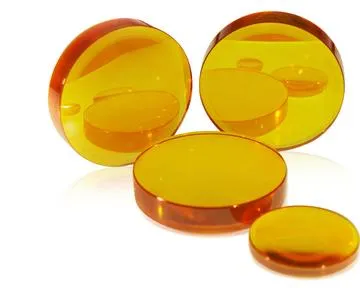

Focus Lens. Dia. 1.5" (38.1mm), FL 5.0" (127mm), ET .291" (7.4mm).
Dia: 1.5" (38.1mm) FL: 5.0" (127mm) ET: .291" (7.4mm)
Material: ZnSe
OEM Reference PN#: 88114
NEW APC PN#: LM-38.1-Z-127.0-7.40-AR
Diameter: 1.5" (38.1mm)
Focal Length: 5.0" (127mm)
Edge Thickness: .291" (7.4mm)
Reference PN#: 88114
Reference PN#: 60696
Reference PN#: TR300-8114
Guaranteed Absorption < 0.15%
|

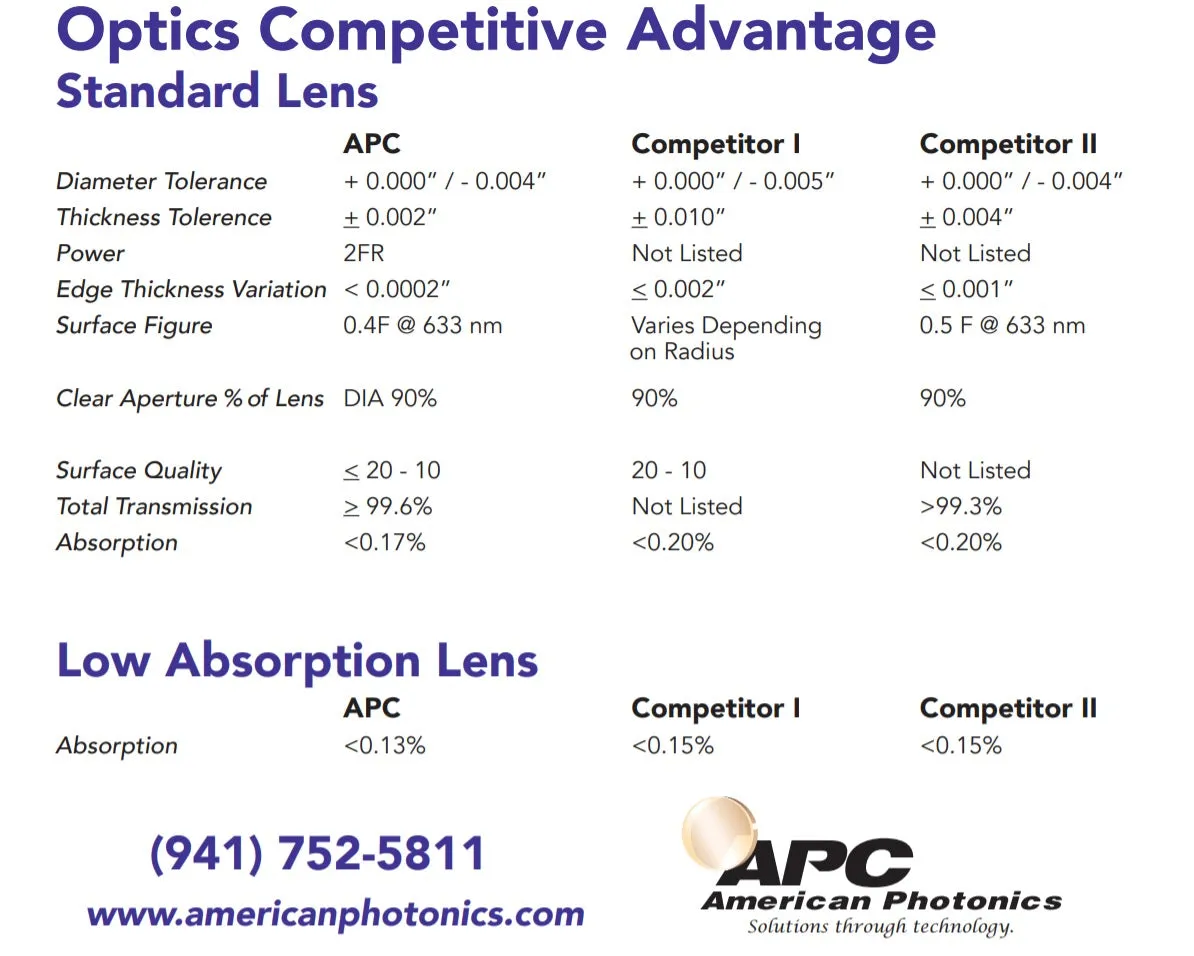

Specifications |
Standards |
APC |
II-VI |
|
Effective Focal Length (EFL) Tolerance |
±2% |
±1% |
±2% |
|
Dimensional Tolerance |
Diameter: 0.000-0.005 |
0/-.004" |
0/-.005" |
|
|
Thickness: ±0.010 |
±0.002" |
±0.010" |
|
Edge Thickness Variation (ETV) |
<= 0.002 |
<=0.0002" TENTHS |
<=0.002" THOUSANDTHS |
|
Clear Aperture (polished) |
90% of diameter |
90% |
90% |
|
Surface Figure at 0.63µm |
Varies depending upon radius |
?/5 @ 632.8µm |
VARIES BY RADIUS |
|
Scratch-Dig |
20-10 |
<=20-10 |
20-10 |
|
AR Coating Reflectivity per Surface at 10.6µm |
<= 0.20% |
<0.1% |
0.1% |
Material: ZnSe laser grade
Machine Type: TruLaser Series 1000, TruLaser Series 2000/3000 [square cutting head], TruLaser Series 5000 [square cutting head], TruLaser Series 7000 Fiber, TruLaser Series 7000/8000 [square cutting head], TruLaser Tube Series 3000/5000, TruMatic Series 3000/6000
APC replacements parts are approved by many OEMs.
To be used on HPed Co2 Laser cutting machines.
Manufactured by automated CNC technology 100% made in USA.
Disclaimer: All parts advertised for sale are made by or for American Photonics.
Amada(R), Bystronic(R), Cincinnati(R), Mazak(R), Mitsubishi(R), Laserlab(R) Laserdyne Prima(R), Precitec(R), Strippit(R), Trumpf(R) and any other trademarks not owned by APC are registered trademarks of the respective owners with which they are associated. APC is an independent site and company that is not affiliated with above-named manufacturers and the use of the names, trademarks and part numbers is for reference, identification and compatibility purposes only.
|
