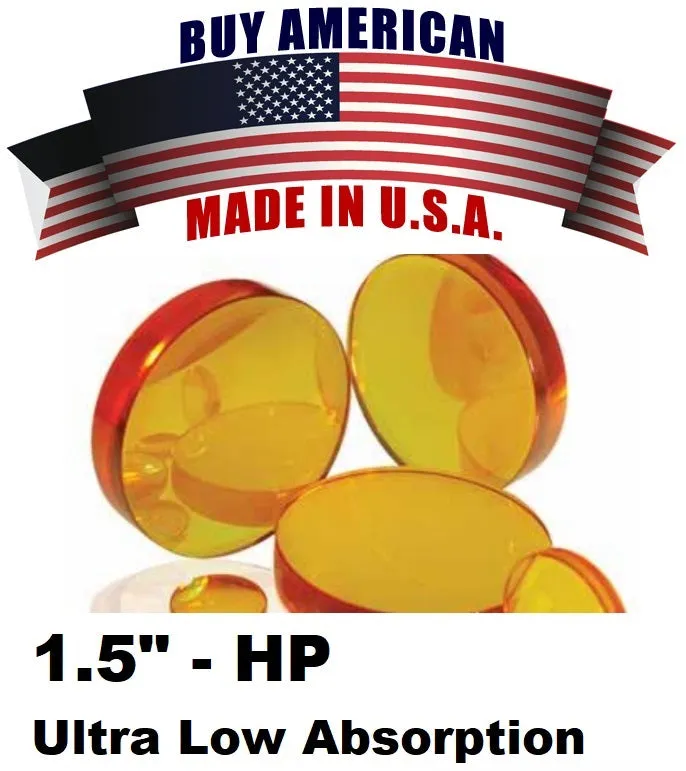

Focus Lens. Dia 1.5" (38.1mm) FL 9.0" (228.6mm) ET .291" (7.4mm) Meniscus ZnSe. - HP

Suitable for Trumpf(R) Laser

Lens Design: Meniscus

APC PN: ZM15900291-HP

APC NEW PN#: LM-38.1-Z-228.6-7.40-ARHP

OEM Reference PN: 141972 UL

Reference PN: 61961ULA

Reference PN: HG10.169/HU

Reference PN#: TR300-1972 61961, 141972, 977976, 996707

Diameter: 1.5" (38.1mm)

Focal Length: 9.0" (228.6mm)

Edge Thickness: .291" (7.4mm)

Absorption < 0.15%

Material: ZnSe laser grade

Material: ZnSe Meniscus

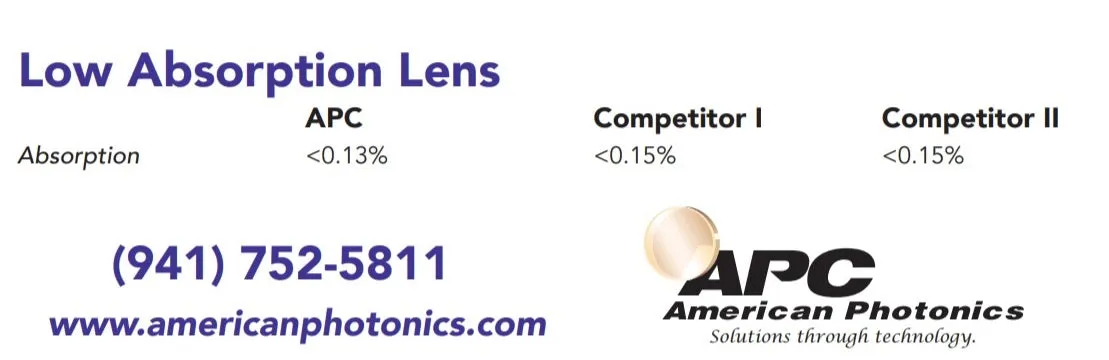

Guaranteed Absorption < 0.13%

Machine Type: TruLaser Series 1000, TruLaser Series 2000/3000 [square cutting head], TruLaser Series 5000 [square cutting head], TruLaser Series 7000 Fiber, TruLaser Series 7000/8000 [square cutting head], TruLaser Tube Series 3000/5000, TruMatic Series 3000/6000

APC replacements parts are approved by many OEMs.

To be used on HPed Co2 Laser cutting machines.

Manufactured by automated CNC technology 100% made in USA.

Disclaimer: All parts advertised for sale are made by or for American Photonics.

Amada(R), Bystronic(R), Cincinnati(R), Mazak(R), Mitsubishi(R), Laserlab(R) Laserdyne Prima(R), Precitec(R), Strippit(R), Trumpf(R) and any other trademarks not owned by APC are registered trademarks of the respective owners with which they are associated. APC is an independent site and company that is not affiliated with above-named manufacturers and the use of the names, trademarks and part numbers is for reference, identification and compatibility purposes only.
