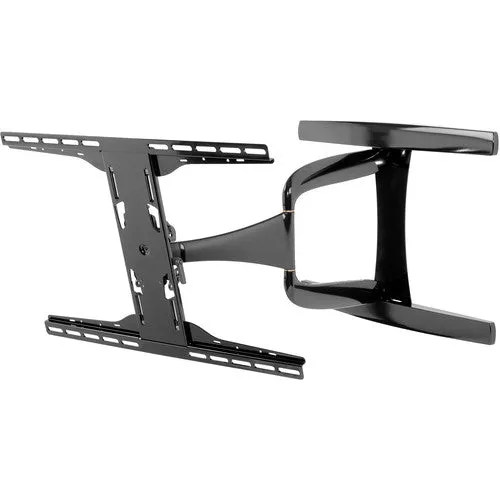

One of the thinnest wall arm mounts on the market, the Peerless-AV® DesignerSeries™ Universal Ultra Slim Articulating Wall Mount is designed exclusively for ultra-thin displays. The SUA761PU is built to hold medium to larger displays firmly in any position – landscape or portrait – while still offering an ultra-low profile. An innovative I-shaped adaptor plate makes it easy to access the back of the display, keeping hardware hidden, and features internal cable management, providing a clean, professional look that transitions smoothly from the wall to the display. With a gloss black finish, the SUA761PU matches any décor.
- The I-Shaped Adaptor plate's innovative design helps avoid blocking connections on back of display
- Landscape or portrait mounting options increases display versatility
- Internal cable management provides clean, professional installation finish
- Universal mount fits displays with mounting patterns 200 x 100 to 600 x 400mm
- Arm retracts to 1.85" (47mm) and extends up to 24.85" (631mm) from wall
- One-Touch™ tilt mechanism allows adjustment of 15/-5° without the use of tools
- Up to ±90° of side-to-side swivel
- Added ±5° of roll for post-installation display leveling without the use of tools
- Up to ±0.5" (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
Product Specifications
-
Minimum to Maximum Screen Size
37" to 65"
-
Weight Capacity
80lb (36kg)
-
VESA Pattern
200x100,200,300x200,300,400x200,400x300,400,600x400
-
Color
Black
-
Finish
High Gloss
-
Distance from Wall
1.85" - 24.85" (47 - 631mm)
-
Mounting Pattern
600 x 400mm (23.62" x 15.75")
-
Security Features
None
-
Roll
±5°
-
Swivel Yaw
±90°
-
Tilt
15/-5°
-
Product Dimensions
24.37" x 16.94" x 1.85"-24.85" (619 x 430 x 47-631mm)
Package Specifications
-
Shipping Weight
24.69lb (11.19kg)
-
Ship Dimensions
23.75 x 4 x 41" (603.3 x 101.6 x 1,041.4mm)
