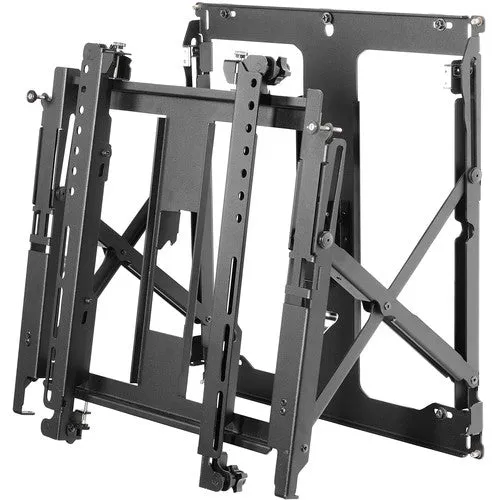

The SmartMount® Full Service Thin Video Wall Mount with Quick Release offers an easy to install solution for both landscape and portrait applications. When overall video wall depth is a concern, the DS-VW755S provides ADA compliance when mounting displays measuring 2" deep or less. Designed for quick service access in recessed video wall applications, the DS-VW755S provides versatility for integrators. Tool-less micro-adjustment at eight points allows the mount to overcome uneven walls, creating a seamless video wall display.

• Quick release mechanism provides convenient display access in recessed applications
• Quick release can be disabled with a locking screw to prevent unintentional pop-outs
• Modular mount for unlimited video wall display configurations
• Simple, tool-less micro-adjustments at 8 points seamlessly align the displays
• Integrated cable management tie-backs make display-to-display cabling simple
• Reusable custom wall spacers eliminate guesswork and on-site installation calculations (sold separately)
• Stabilizing jack screw provides rigid display alignment

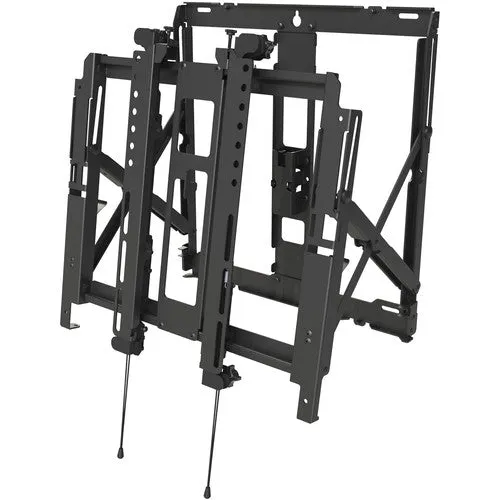

• Extend the display into a negative tilt position for ease of service
• ADA compliant when mounting displays measuring ≤2.0" deep
• VESA® 200 x 200 up to 400 x 400mm compliant

Product Specifications

• Minimum to Maximum Screen Size

  46" to 65"

• VESA Pattern

  200 x 200 up to 400 x 400mm

• Weight Capacity

  80lb (36.4kg)

• Color

  Black

• Finish

  Textured

• Security Features

  Security Hardware

• Distance from Wall

  1.88 - 2.63" (48 - 67mm)

• Product Dimensions

  21.44" x 20.50" x 1.88"-2.63" (545 x 521 x 48 - 67mm)

• Product Weight

  20.9lb (9.5kg)
