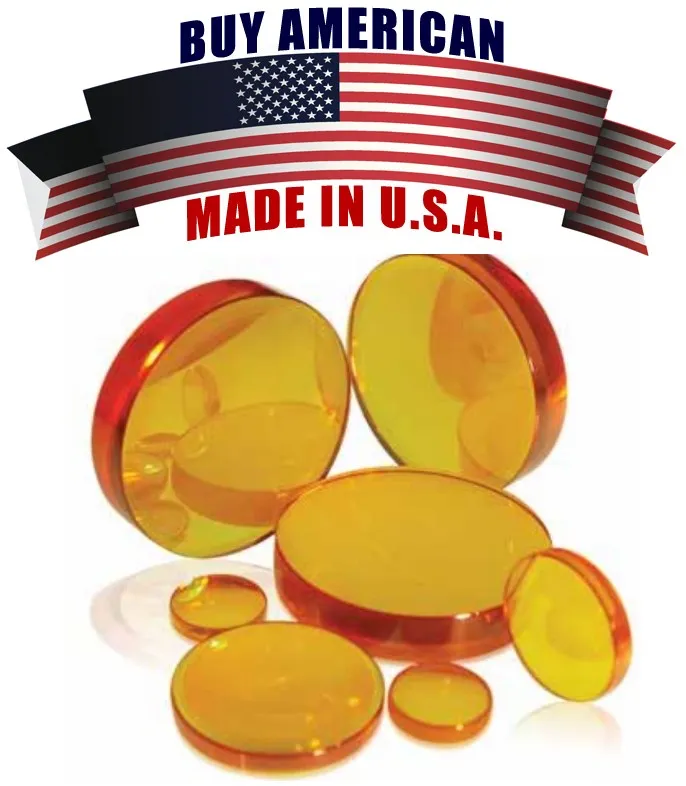

LM-40.0-Z-250.0-7.40-AR-0380115 - Focus Lens. Dia 1.575" (40mm), FL 9.842" (250mm), ET .295" (7.4mm) Without Chip D40 - Suitable for Trumpf(R) Co2 Laser

Focus Lens Meniscus

Material : ZnSe

Diameter: 1.575"( 40mm)

Focal Length: 9.842" (250mm)

Edge Thickness: .295" (7.4mm)

Suitable for OEM: Trumpf Machine type: Trulaser 3030(L20) 3030 lean edition, 3040 (L32)

Cutting head with mm focal length and nozzle M12 connection thread.

APC PN#: LM-40.0-Z-250.0-7.40-AR

Reference PN1# : 0380115

Reference PN2# : 400250LMA

Reference PN3# : 630789-117

TR300-0250 (Cut-NO RFID)

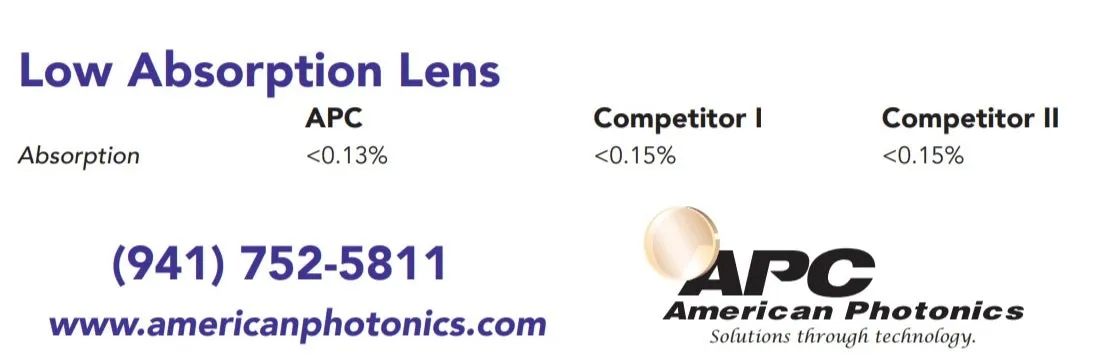

Guaranteed Absorption 15% or better.

APC replacements parts are approved by many OEMs.

To be used on HPed Co2 Laser cutting machines.

Manufactured by automated CNC technology 100% made in USA.

Disclaimer: All parts advertised for sale are made by or for American Photonics.

Amada(R), Bystronic(R), Cincinnati(R), Mazak(R), Mitsubishi(R), Laserlab(R) Laserdyne Prima(R), Precitec(R), Strippit(R), Trumpf(R) and any other trademarks not owned by APC are registered trademarks of the respective owners with which they are associated. APC is an independent site and company that is not affiliated with above-named manufacturers and the use of the names, trademarks and part numbers is for reference, identification and compatibility purposes only.
