Key features

Time-saving pulley alignment method requires no cross-check
Shows offset, vertical, and horizontal angles simultaneously
Live corrections validate when precision alignment is achieved
Strong magnets mount onto virtually any pulley face
Efficient, accurate one-person operation with no training needed

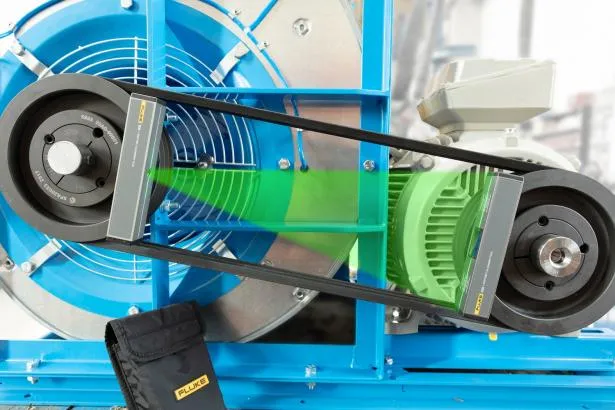

The Fluke 835 Laser Belt Alignment Tool is the ideal tool to precision-align belt-driven machines in your facility.

Get more from your belt-driven systems through proper machine alignment. Misalignment can take years off your machinery’s useful lifespan — and lead to time and money spent on unnecessary repairs and replacements, as well as costly unplanned downtime.

Efficient and accurate pulley alignment

The Fluke 835 Laser Belt Alignment Tool provides fast, easy, and accurate pulley alignments to help keep your plant up and running. In just a few steps, you can precisely align all of the belt-driven machines in your plant.

With the Fluke 835, a single operator can quickly and easily achieve precision alignment for all your standard belt-driven machines whose alignment has never been prioritized. The benefits of precision alignment include longer-lasting parts, such as bearings, belts, and seals, as well as savings from reduced production loss and energy waste. "

Specifications: Fluke 835 Laser Belt Alignment Tool

Specifications
Fluke 835 Laser Belt Alignment Tool
Accuracy	0.2˚
Laser wavelength	505 - 535 nm (green – more visible)
Output power	< 1.0 mW
Classification class	2
Measuring distance	10 m between units
Laser line length	7 m at 5 m distance
Controls	Laser ON/OFF rocker switch
Battery type	4 AAA alkaline batteries
Operating time	6 hours
Operating temp	-5˚C to 40˚C
Storage temp	-10˚C to 70˚C
Mounting method	Strong magnets
Weight	0.3 kg
Dimensions	37 x 40 x 170 mm
Housing	Gray anodized aluminum

Fluke 835 Reflector
Accuracy	0.2˚
Reflector size	21 x 32 mm
Mounting method	Strong magnets
Weight	0.27 kg
Dimensions	37 x 40 x 170 mm
Housing	Gray anodized aluminum
