Features

• Alcor Collection
• Approved for wall mounting applications only (both vertical and horizontal mounting)
• Cold-rolled steel housing
• Diffuser is 1/8” thick mattee white acrylic
• Unit mounts to deep 4” octagonal junction box or a deep 4”x4” square junction box with round mud ring mounting holes 2.75” on center
• Unit requires a 2.5” deep junction box
• Driver mounts inside junction box
• TRIAC and ELV dimming at 120V AC; 0-10V dimming, 100% to 10% current output
• UL/ETL Listed
• Damp Rated: Suitable for bathrooms and covered patios
• ADA Compliant

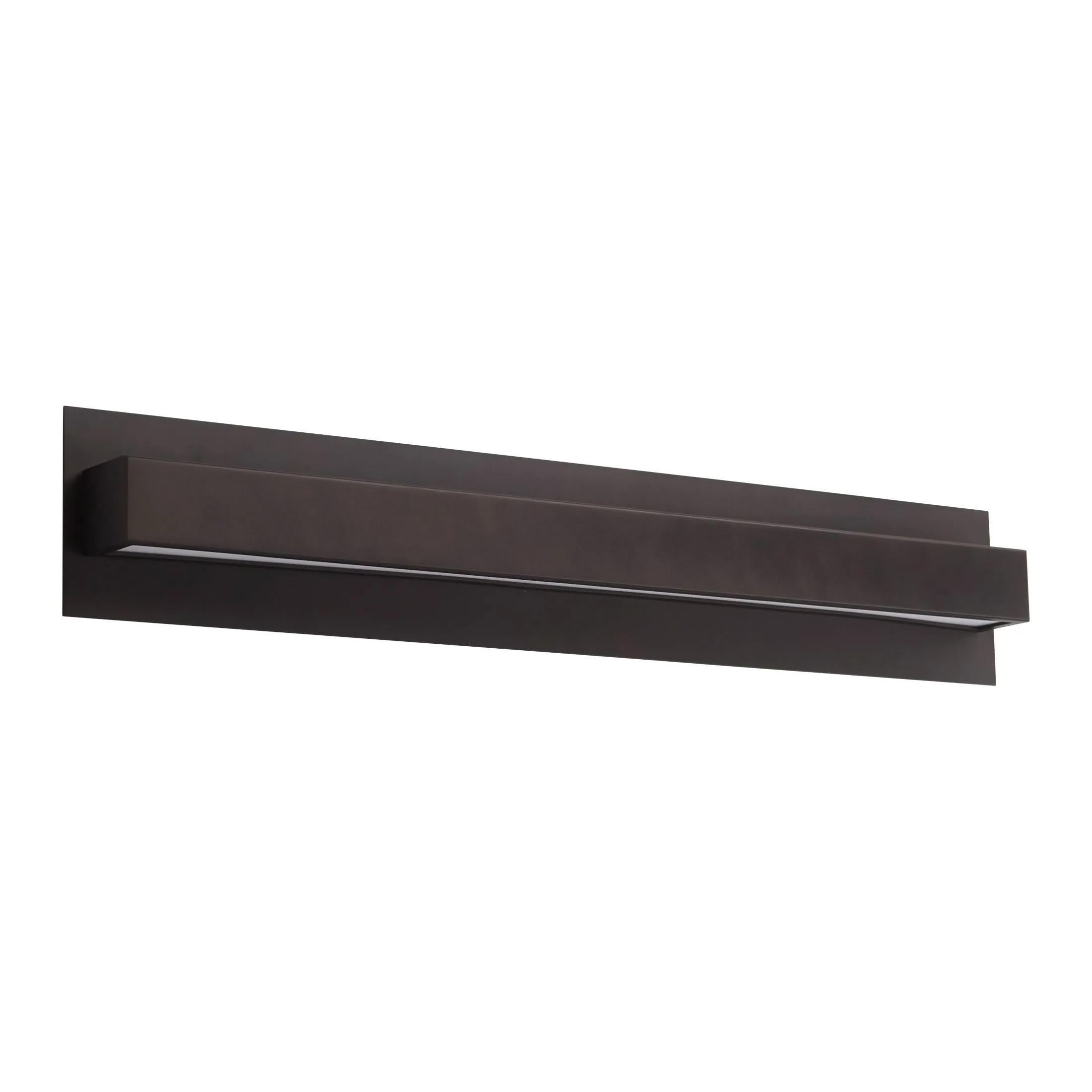

• Available in Oiled Bronze or Satin Nickel finish
