29100023-LM-38.1-Z-127.0-7.40-AR - Focus Lens. Dia 1.5" (38.1mm), FL 5" (127mm), ET .291" (7.4mm).

Focus Lens Meniscus ZnSe Dia 1.5", FL 5", ET .291"

Lens Meniscus ZnSe. Dia 38.1mm, FL 127mm, ET = 7.4mm

Suitable for OEM: Trumpf and Strippit/LVD

Lens Design: Meniscus

O&M PN# : 29100023

APC PN#: - ZM15500291

APC PN#2: LM-38.1-Z-127.0-7.40-AR

OEM Reference Part # Trumpf Part #: 88114, 088114

Strippit/LVD Part #: 188270100

Reference PN# :TR300-8114

Reference PN# :HG10.167/

Reference PN# 088114, 60696, 406294. 110109, 61014, 658108, 29100023, 6930001002

Dia: 1.5" (38.1mm) FL: 5" (127mm) ET: .291" (7.4mm)

Material: ZnSe Laser Grade

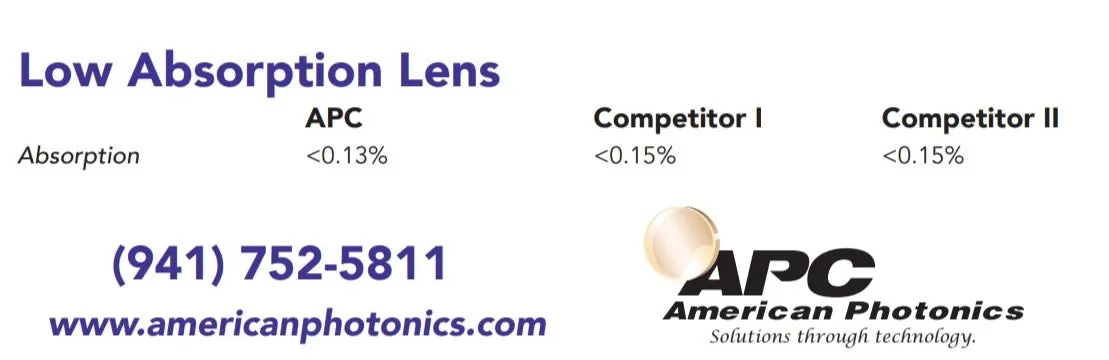

Guaranteed Absorption < 0.15%

Machine Type: TruLaser Series 1000, TruLaser Series 2000/3000 [square cutting head], TruLaser Series 5000 [square cutting head], TruLaser Series 7000 Fiber, TruLaser Series 7000/8000 [square cutting head], TruLaser Tube Series 3000/5000, TruMatic Series 3000/6000

APC replacements parts are approved by many OEMs.

To be used on HPed Co2 Laser cutting machines.

Manufactured by automated CNC technology 100% made in USA.
