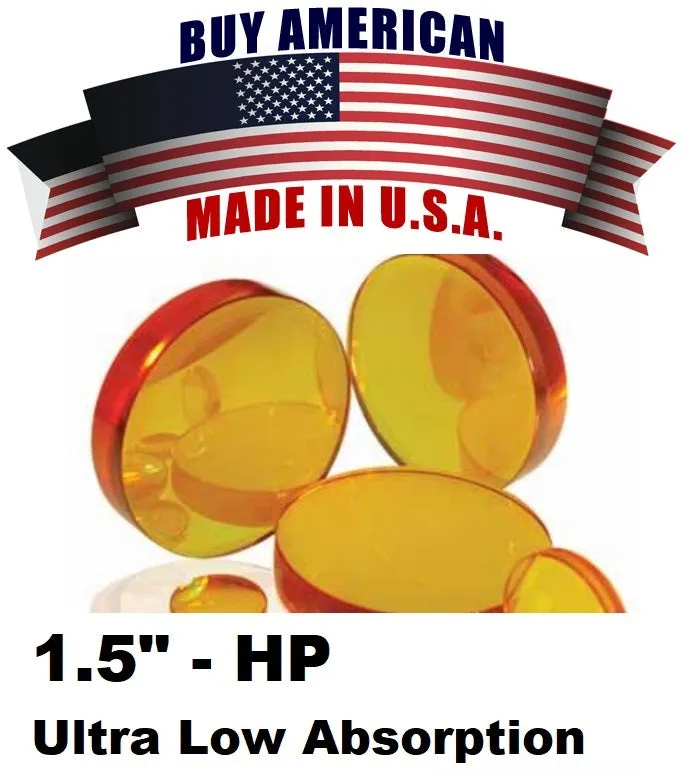

29100023 - Focus Lens. Dia 1.5" (38.1mm), FL 5" (127.0mm), ET .291" (7.4mm). Suitable for Trumpf (R) Co2 Laser HP

Focus Lens Meniscus ZnSe Dia 1.5", FL 5", ET .291"

Lens Meniscus ZnSe. Dia 38.1mm, FL 127mm, ET = 7.4mm

Suitable for OEM: Trumpf and Strippit/LVD

HP Low Absorption

Lens Design: Meniscus

APC PN#: - ZM15500291-HP

APC PN#2: LM-38.1-Z-127.0-7.40-ARHP

OEM Reference PN# : 88114-HP, 088114UL, 29100023

Strippit/LVD Part #: 188270100

Reference PN# :TR300-8114MP5

Reference PN# :HG10.167/HU

Reference PN# :60696ULA, 312503, 29100023, 88114, PLLPZ0125B

Dia: 1.5" (38.1mm) FL: 5" (127mm) ET: .291" (7.4mm)

Material: ZnSe Laser Grade

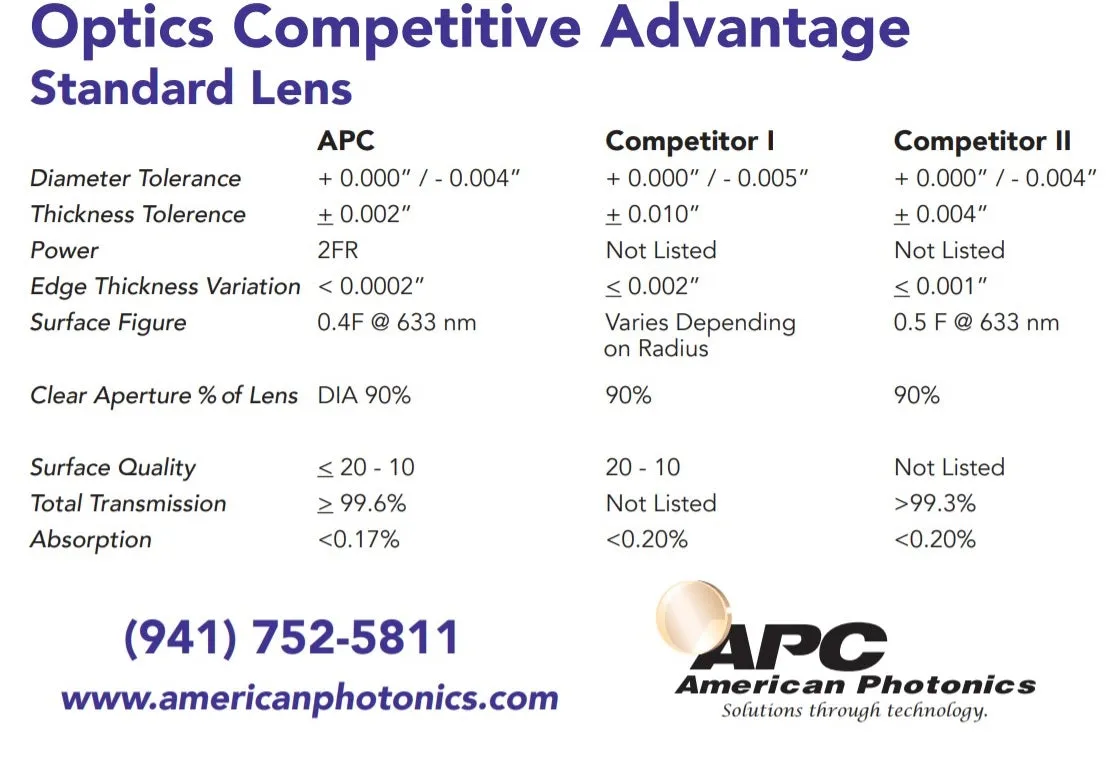

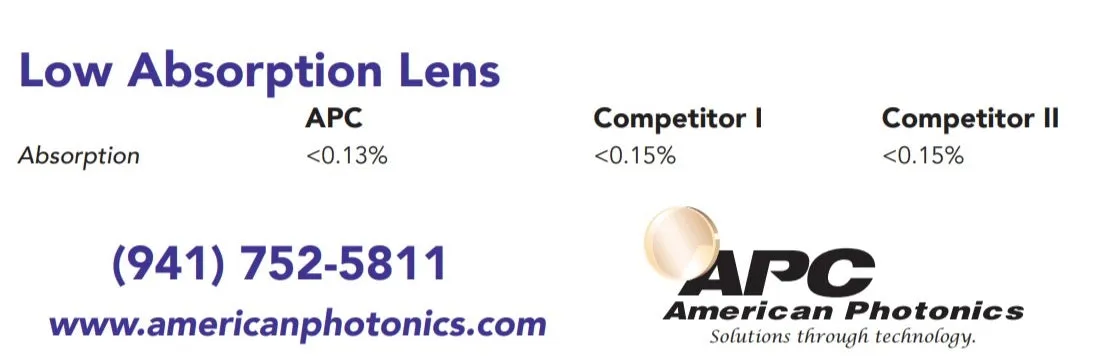

Guaranteed Absorption < 0.13%

Machine Type: TruLaser Series 1000, TruLaser Series 2000/3000 [square cutting head], TruLaser Series 5000 [square cutting head], TruLaser Series 7000 Fiber, TruLaser Series 7000/8000 [square cutting head], TruLaser Tube Series 3000/5000, TruMatic Series 3000/6000

APC replacements parts are approved by many OEMs.

To be used in HPed Co2 Laser cutting machines.

Manufactured by automated CNC technology 100% made in USA.

Disclaimer: All parts advertised for sale are made by or for American Photonics.

Amada(R), Bystronic(R), Cincinnati(R), Mazak(R), Mitsubishi(R), Laserlab(R) Laserdyne Prima(R), Precitec(R), Strippit(R), Trumpf(R) and any other trademarks not owned by APC are registered trademarks of the respective owners with which they are associated. APC is an independent site and company that is not affiliated with above-named manufacturers and the use of the names, trademarks and part numbers is for reference, identification and compatibility purposes only.
